Poynting MIMO-4-15 5-in-1 Transportation & Automotive Antenna (White)

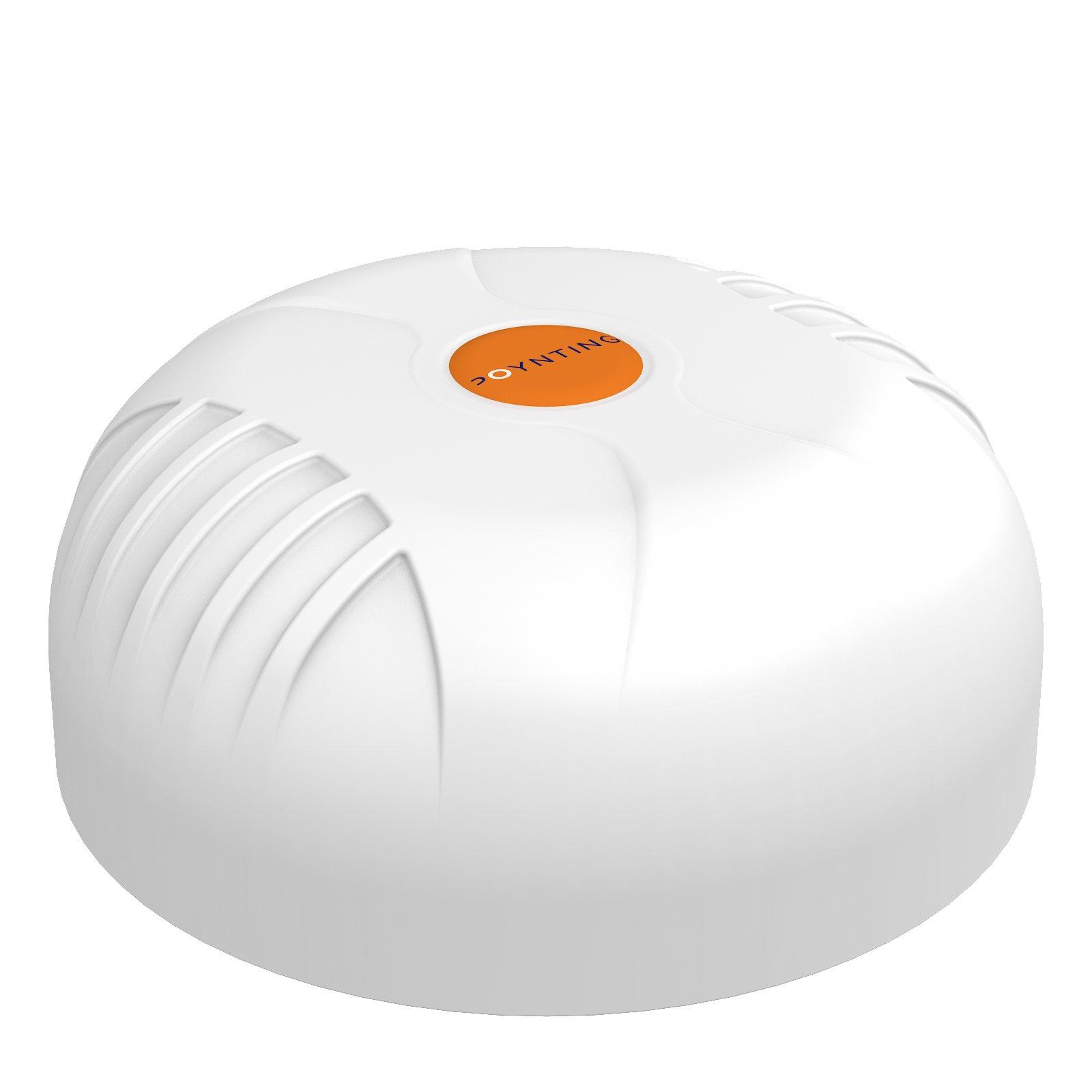

Poynting MIMO-4-15 5-in-1 Transportation & Automotive White Antenna Main Image

Click to zoom

Poynting MIMO-4-15 5-in-1 Transportation & Automotive White Antenna Main Image
Poynting MIMO-4-15 5-in-1 Transportation & Automotive White Antenna Top Image

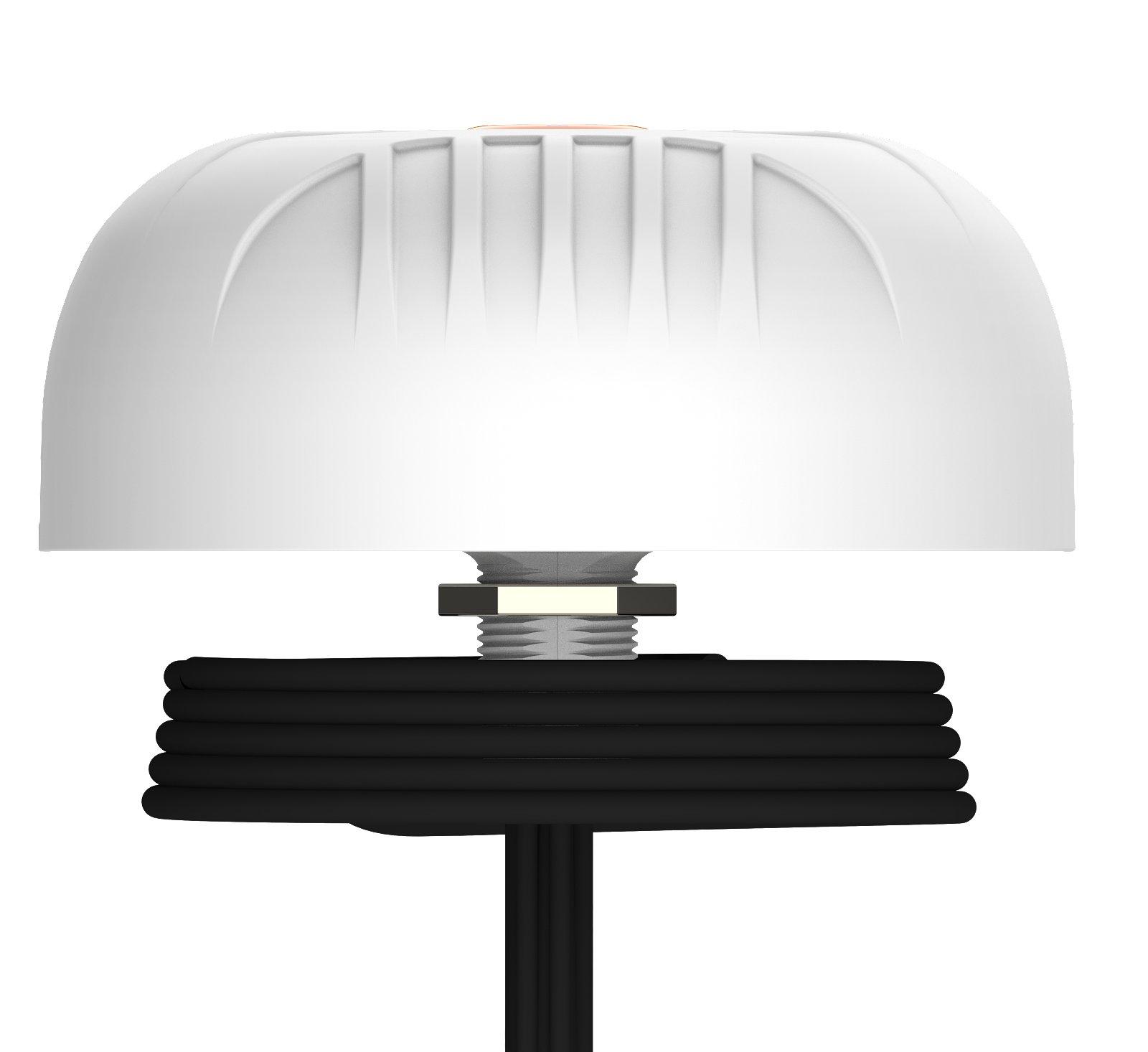

Poynting MIMO-4-15 5-in-1 Transportation & Automotive White Antenna Side Image

Poynting MIMO-4-15 5-in-1 Transportation & Automotive Antenna (White)

Part Number: MIMO-4-15-W

£203.99inc VAT
£169.99ex VAT

40 In Stock

Want it by tomorrow? Order within 8 hours 49 minutes for next business day delivery.

Easy Returns

Bulk Pricing

  • 1+

    £203.99

  • 5+

    £179.82

  • 10+

    £155.66

The Poynting MIMO-4-15 is a 5-in-1 high performance, multi frequency antenna within a single housing. The antenna provides two cellular, two Wi -Fi and a GPS/GLONASS antenna. The two cellular MIMO antennas offer wideband coverage from 617 to 6000 MHz, covering contemporary LTE/4G and 5G bands for future proof implementation.

Description

The ultra-wideband performance of the MIMO-4-15 allows it to be used across different operators and technologies and is ready for future cellular technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz.

This antenna provides two dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability. The radiation patterns of all radiating elements provide an excellent balance between omni-directionality, pattern diversity and good radiation abilities at the desired elevation. This is an important criterion for the transportation and marine market, which the antenna was specifically designed for.

The main applications of the MIMO-4-15 are for commercial/industrial vehicles, marine, M2M and other IoT systems using a wide range of radio technologies, while remaining future-proof over the wide frequency band.

Key Highlights

  • 5-in-1 High performance multi frequency automotive antenna
  • Ultra-wideband coverage from 617 to 6000 MHz for cellular
  • Features 2 x cellular, 2 x Wi-Fi and 1 x GPS/GLONASS antenna
  • Ultra-rugged mechanical design to allow for IP69K rating
  • Ground plane independent; antenna design with internal ground
  • Multiple mounting options available for ease of installation
  • Radome Material: PC+ABS (Halogen Free)
  • Ports: 5
  • SISO/MIMO: 2X2 MIMO LTE & 2X2 Wi-Fi
  • Coax Cable Type: RTK-031 – LTE, Wi-Fi & GPS
  • Coax Cable Length: 2m – LTE, Wi-Fi & GPS
  • Connector Type: SMA (M) – LTE, Wi-Fi & GPS
  • Also available in black

Documents

  • Brochure:Poynting MIMO-4-15 5-in-1 Transportation & Automotive White Antenna Datasheet
